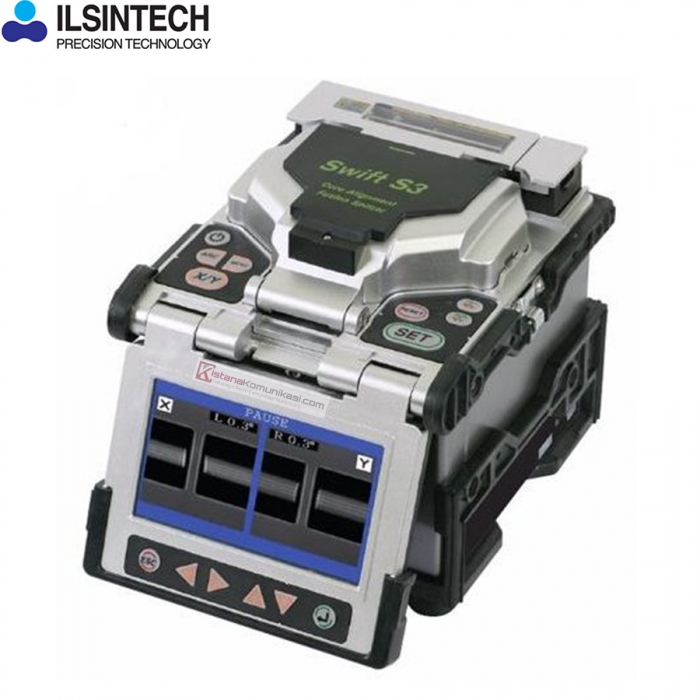

Ilsintech Swift S3 Fiber Optical
| Stok | Tersedia |
| Kategori | Fusion Splicer, Telecomunication |
Ilsintech Swift S3 Fiber Optical
Ilsintech Swift S3 Fusion Splicer Features
- 4.3-inch two-position color display.
- Heating tube allows heating two sleeves simultaneously, which increases operation speed by 20%.
- 250 splicing/heating cycles at battery operation.
- User-friendly menu.
- High-quality operation under wind and rain, dust and water protection.
- Stress-resistance.
- Compact dimensions and light weight.
Ilsintech Swift S3 Fusion Splicer Technical Specifications
| Alignment method | IPAS core-to-core alignment (Image Pattern Analysis Alignment System) |
| Applicable Fibers | SM (ITU-T G.652, ITU-T G.657), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655), EDFA, EI980, different types (SM/MM) |
| Coating | 80 ~ 150 µm |
| Buffer covering | 100 ~ 1000 µm |
| Fiber Cleave Length | 8 ~ 18 mm – for fiber in buffer covering 250 µm 16 mm – for fiber in buffer covering 900 µm |
| Average Splice Loss | SM: 0.02 dB, MM: 0.01 dB, DS: 0.04 dB, NZDS: 0.04 dB |
| Return loss | < 60 dB |
| Splicing and heating time (typical) | 9 sec for SM fiber 26 sec with sleeve heating (60 mm) |
| Programs | splice: 100 modes heating tube: 50 modes |
| Internal Memory | last 2000 results (100 images) |
| General Characteristics | |
|---|---|
| Interface | USB, RCA, ext. power |
| Power Supply | battery 14.8 V power adapter ~100-240 V |
| Additional Power Supply | DC power supply 12 V and from cigarette lighter |
| Battery splice/heat cycles | 250 cycles (lithium-polymer battery) |
| Electrode lifetime | > 2000 operations |
| Mechanical Tension Test | 2.0 N or 4.4 N |
| Display | 2 CMOS cameras / 4.3” color LCD touchscreen |
| Fiber display and magnification | for X & Y view: 300X for XY view: 170X |
| Operation & Storage | |
| Operation Altitude | 0 ~ 5000 m |
| Operation Conditions | from –10 to +50°C @ RH up to 95% |
| Storage Conditions | from –40 to +80°C @ RH up to 95% |
| Protection Systems | wind protection up to 15 m/s protection from rain, dust, stress |
| Dimensions & Weight | |
| Dimensions (w × d × h) | 138 × 160 ×135 mm (including display) |
| Weight | 2.3 kg (with battery) |
Ilsintech Swift S3 Fusion Splicer Package Contents
- Fusion splicer unit (1 pc.)
- Power adapter (1 pc.)
- Sleeve loader (2 pcs.)
- Spare electrodes (1 set)
- Battery (1 set)
- Alcohol dispenser (1 pc.)
- Carrying Case (1 pc.)
- Manual (1 pc.)
Tags: Fusion Splicer Ilsintech, Fusion Splicer Ilsintech Swift S3, Ilsintech Swift S3
Ilsintech Swift S3 Fiber Optical
| Berat | 250 gram |
| Kondisi | Baru |
| Dilihat | 178 kali |
| Diskusi | Belum ada komentar |
