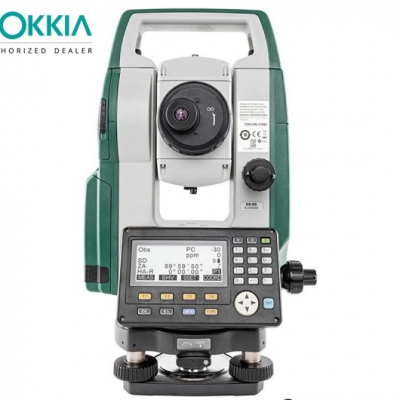

Total Station Sokkia CX 55

Stok Tersedia
Kategori Surveying Instrument, Total Station
Tentukan pilihan yang tersedia!
Silahkan menghubungi kontak kami untuk mendapatkan informasi harga produk ini.
Pemesanan lebih cepat! Quick Order
Bagikan ke

Total Station Sokkia CX 55

Total Station Sokkia CX 55

Total Station Sokkia CX 55 Reflectorless With Single Display Description : These rugged total stations offer Sokkia’s pinpoint precision and use reflectorless RED-tech™ EDM technology. Each total station measures up to 350 meters (1,148 feet) in non-prism mode and up to 4,000 meters (13,120 feet) with a prism. The coaxial EDM beam and laser pointer ensure fast, accurate aiming, and each total station provides an impressive distance measurement speed of 0.9 seconds. Sokkia’s original absolute encoders offer long-term reliability on the job site, and the dual-axis compensator produces stable measurements even when you’re working on uneven terrain. In addition to a waterproof/dustproof IP66 design, this total station features a red coaxial laser pointer, on-board survey software capable of storing up to 5,000 points, a 25-key keyboard with a 4-way directional backlit arrow key, a 15-hour battery life, and horizontal and vertical locking tangents. Specifications : Telescope – Magnification/Resolving Power: 30x/2.5”; Length: 171mm; Objective Aperture: 45mm (48mm for EDM); Image: Erect; Field of View: 1°30’ (26m/1,000m); Minimum Focus: 1.3m; Reticle Illumination: 5 brightness levels. Angle Measurement – Display Resolution: 1”/5” (0.0002/0.001 gon, 0.005/0.02 mil); Accuracy: CX-52, 2”; CX-55, 5”; Dual-axis Compensator/Collimation Compensation: Working Range, ±6’ (±111 mgon). Distance Measurement – Laser Output (Reflectorless Mode): Class 3R/Prism/Sheet Mode: Class 1; Measuring Range: Reflectorless, 0.3m to 350m, One AP Prism, up to 4,000m; Display Resolution: Fine/Rapid, 0.001m/0.01 ft./1/8 in., Tracking, 0.01m/0.1 ft./1/2 in.; Accuracy: Reflectorless/Reflective Sheet, (3 + 2ppm x D) mm, AP/CP Prism, (2 + 2ppm x D) mm; Measuring Time: Fine, 0.9s (initial 1.7s), Rapid, 0.7s (initial 1.4s), Tracking, 0.3s (initial 1.4s). Interface: Serial RS-232C. Data Storage (Internal Memory): Approximately 5,000 points. Laser Pointer: Coaxial red laser using EDM beam. Levels – Graphic: 6’ (inner circle); Circular Level: 10’/2mm. Optical – Magnification: 3x; Minimum Focus: 0.3m from tribrach bottom. Operating Temperature: -20°C to 60°C. Power Supply: Li-ion rechargeable detachable battery (BDC46C). Operating Time: Approximately 15 hours. Dimensions: 7”W x 7.1”D x 13.7”H. Weight: 11.9 lbs.

Tags: ,

Total Station Sokkia CX 55

Berat 250 gram
Kondisi Baru
Dilihat 236 kali
Diskusi Belum ada komentar
