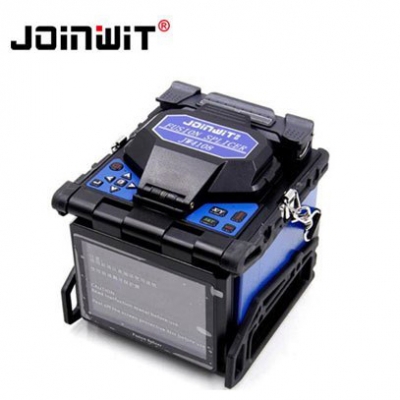

Jual Fusion Splicer JOINWIT JW4108
Rp 21.500.000 Rp 22.500.000Stok | Tersedia |
Kategori | Telecomunication |
Jual Fusion Splicer JOINWIT JW4108
Specifications
Applicable Fibers | SM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Series |
Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
Return Loss | ≥60dB |
Tension Test | 2.0N(200gf)(Standard) |
Splicing Program | 50 groups |
Protection Sleeve Length | 20mm, 40mm, 60mm |
Language | Chinese, English |
Environmental Conditions | -10~+50℃(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
Power Supply | AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC)DC adaptor: 12V voltage 8AH |
Dimensions | 155(W)*165(D)*150(H) |
Weight | 2.5kg |
Standard Packages
Machine (JW4108 )
Fiber Cleaver
Fiber Stripper
AC Adaptor
Battery
Charger
Spare Electrodes
Cooling Tray
Instruction CD
Quick Reference Guide
Rubber-insulated wire stripping pliers
Rubber-insulated wire cutting fixture
One fixture which is avoid the fiber in Rubber-insulated wire broken down
Transit Case with Carrying Strap
Tags: Fusion Splicer Joinwit, Fusion Splicer JOINWIT JW4108, Joinwit JW 4108
Jual Fusion Splicer JOINWIT JW4108
Berat | 250 gram |
Kondisi | Baru |
Dilihat | 262 kali |
Diskusi | Belum ada komentar |
